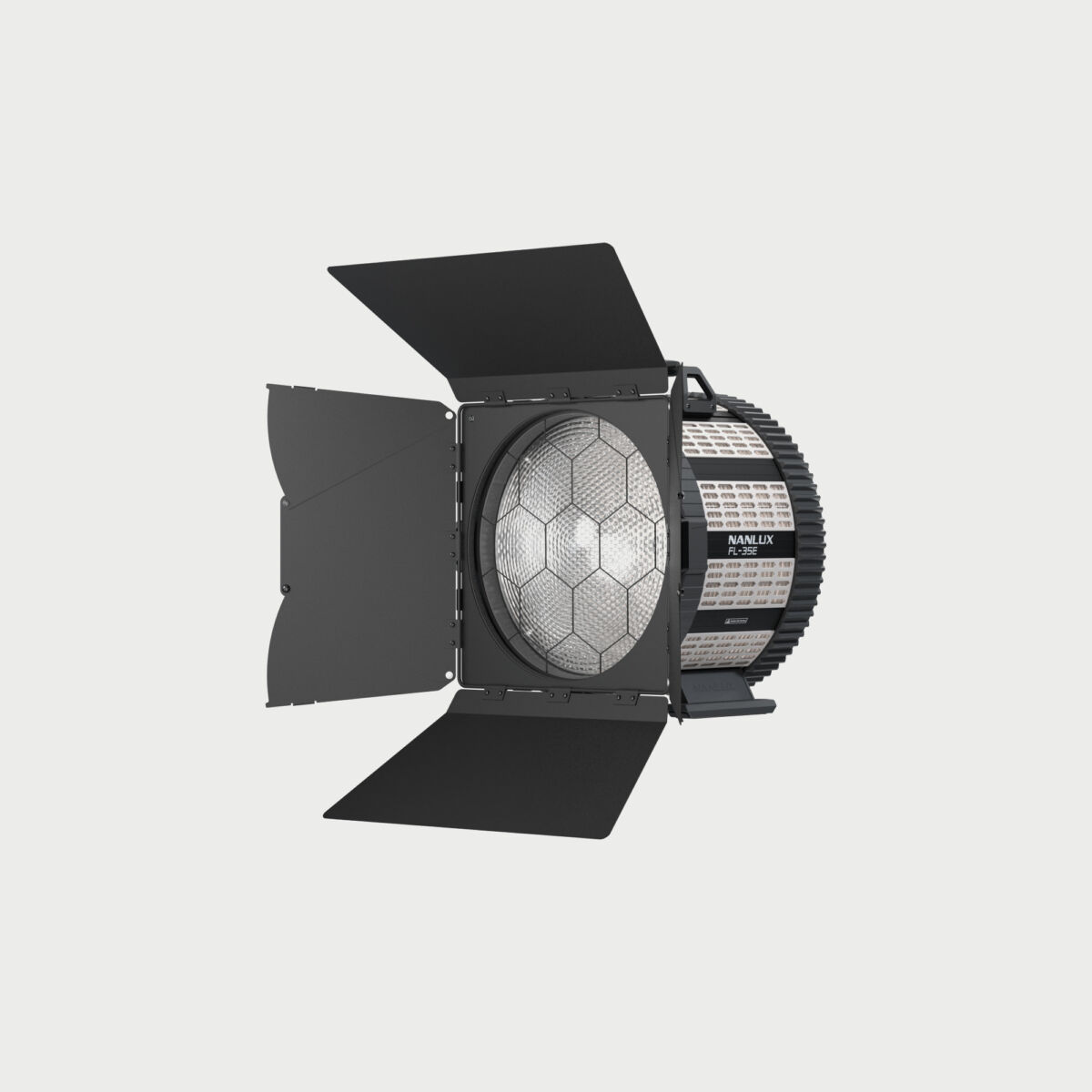

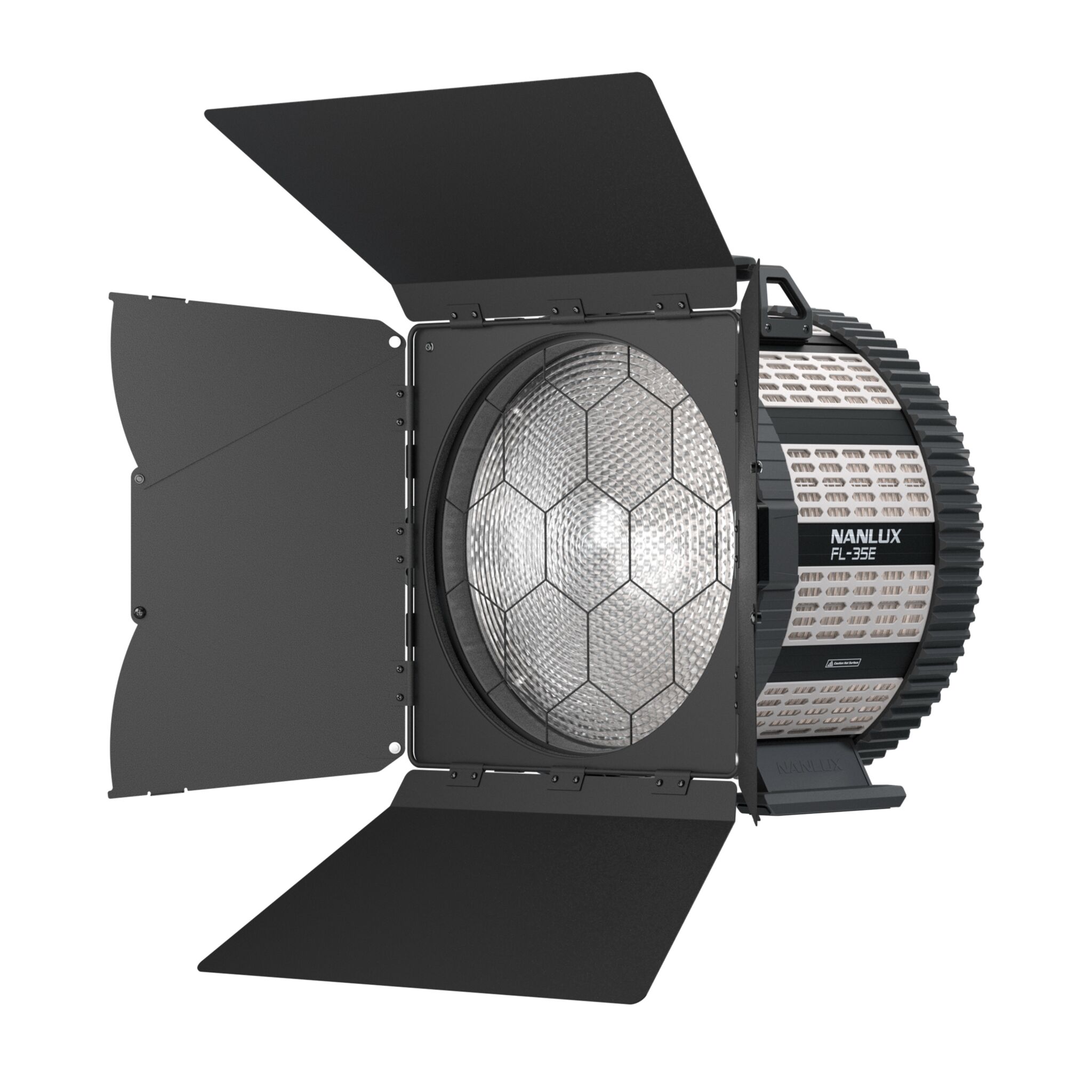

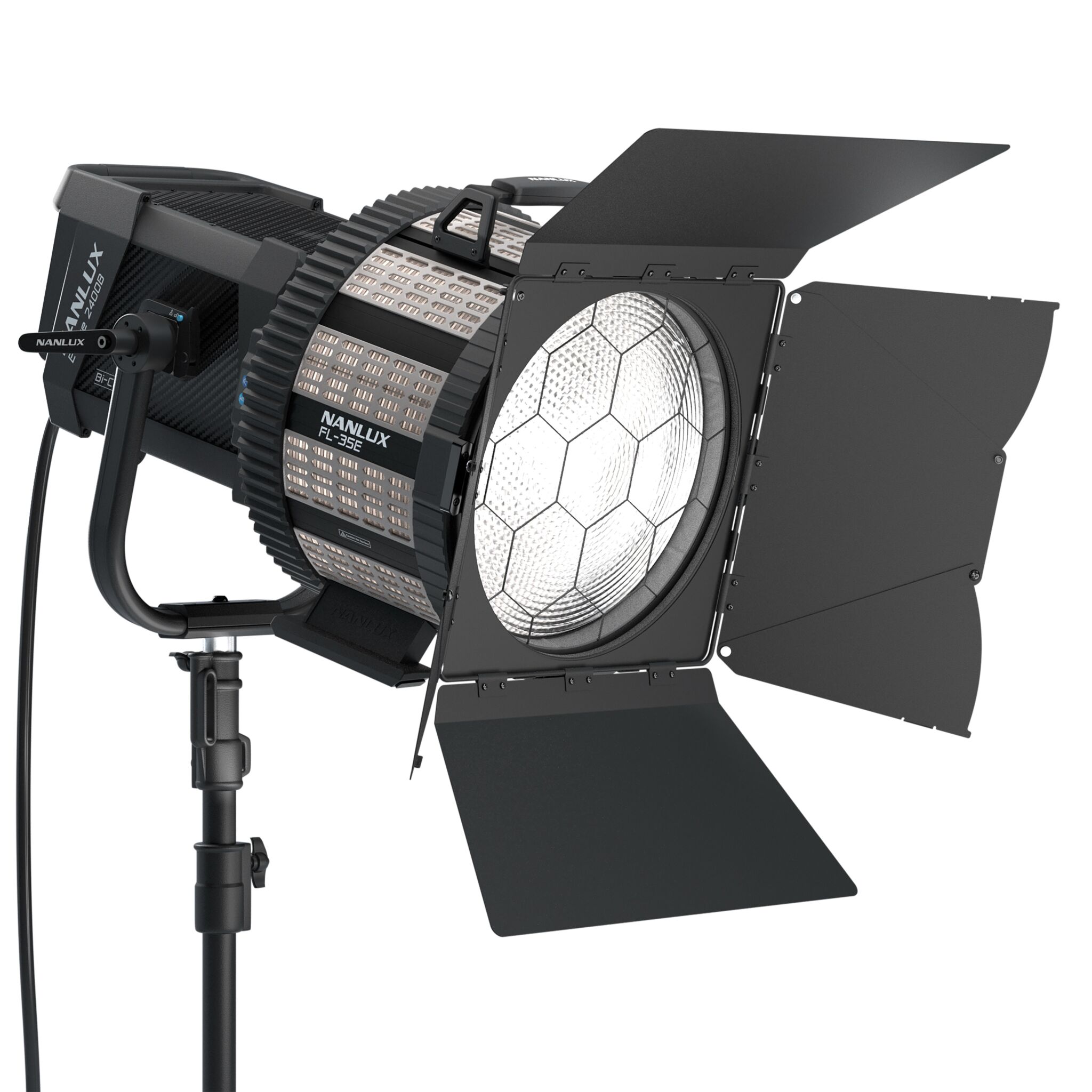

FL-35E Motorized Fresnel Lens 15°-46° (for Evoke 2400B) Nanlux
The Motorized Fresnel Lens FL-35E is a cutting-edge NL mount optic with remote control and a zoom range from 15° to 46°. It seamlessly integrates with the Evoke 2400B, delivering a remarkable illumination of 75700lux@3m, 5600K, 15°. In addition to superior optical performance and precise beam angle control, the FL-35E features a precise motorized adjustment function powered via the electronic contacts in Nanlux's NL mount of the Evoke 2400B. The zoom range is controllable through multiple methods, providing a more intelligent and efficient workflow for productions.
Brand : Nanlux |SKU : NX-FL35E|EAN : 6949987491880
Technical specifications
| Beam Angle | 15°-46° |
|---|---|
| Compatible Product or Mount | NL mount lighting fixtures that with electronic contacts |
| Product Size | FL-35E: 430.38 × 490.15 × 330.3mm Barndoor: 525.61 × 399.21 × 39.15mm Trolley Case: 600 × 400 × 520mm |
| Product Weight | FL-35E: 10kg Barndoor: 2.3kg Trolley Case: 6kg |
| IP Rating | IP55 |
Box content
- 1x FL-35E
- 1x Barndoor
- 1x Center of Gravity Adjuster for Evoke 2400B (left)
- 1x Center of Gravity Adjuster for Evoke 2400B (right)
- 10x M4*14 Countersunk Cross Screw
- 2x User Manual (FL-35E+AS-CGA-EV2400)
- 1x Trolley Case
Brand responsible
Manufacturer: Guangdong Nanguang Photo&Video Systems Co., Ltd., Dongli Section, Highway 324, Chenghai, Shantou City, Guangdong Province, China Also from Nanlux
